Low Cost Biogas Purification System Biogas Desulfurizer To Remove
H2S
Biogas Purication Equipment Description:
In order to turn the biogas into a substitute for natural gas, we
need to remove the carbon dioxide (CO2) and the pollutants. Qingdao
JCWY has developed a technical solution that now allows biogas
producers to efficiently turn it into biomethane using purification
processes. The technology used to separate the two main components
of biogas – methane and carbon dioxide – is based on the use of
polymer membranes produced by Air Liquide Advanced Separations
(ALaS). This efficient system generates biomethane with a methane
(CH4) content of between 96.5% and 99%, depending on its purpose.
With its technical solution for biogas purification, Qingdao JCWY
takes charge of every stage of processing, from when it leaves the
digester until it is injected into the gas network.
Biogas Purication Equipment Advantage:
1. Easy to install and easy to use.
2. During the work process, no personnel are required to be on
duty, and the materials are renewed regularly.
3. The desulfurization efficiency is high, and the effect of
recycling can be achieved by oxidation reduction in the later
stage.
4. Fine desulfurization, high precision of desulfurization.
5. Initially low investment and medium operating costs.
Biogas Purication Equipment Working Priciple:
First step: Fe2O3 · H2O + 3 H2S = Fe2S3 + 4 H2O (desulfuration)
Second step: Fe2S3 + 3/2 O2 + 3 H2O = Fe2O3 · H2O + 2 H2O + 3 S
(regeneration)
Biogas Purication Equipment Application:
It is mainly used for the removal of corrosive hydrogen sulfide
(H2S) gas in biogas, and can also be used for other purification of
hydrogen sulfide gas, so that the treated gas provides safety for
the normal use and service life of the required equipment.

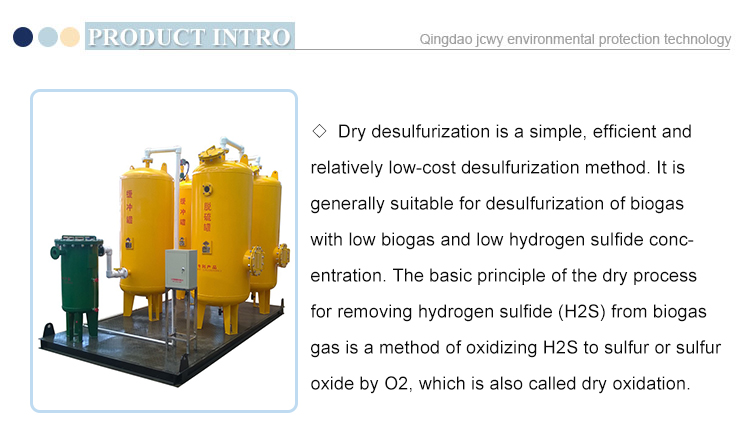

Biogas Purication Equipment Showing:
