Kitchen Garbage Aerobic Reactor Fluidized Bed Biofilm Reactor

Ask Lasest Price
Brand Name :	JCWY
Model Number :	JC
Certification :	ISO9001:2015
Price :	USD50000~500000/set
Payment Terms :	L/C, T/T
Supply Ability :	5sets/month
Delivery Time :	30~40working days

Add to Cart

Product Details
Company Profile

Kitchen Garbage Aerobic Reactor Fluidized Bed Biofilm Reactor

Activated Granular Aerobic Sludge Biofilm Reactors Aerobic Reactor

Aerobic Reactor Introduction:

In an aerobic reactor, the product conversion rate or the degradation rate is mainly based on the bubble size and gas-to-liquid mass transfer rate. Oxygen solubility is a main parameter that should be optimally maintained because the presence of salt may hinder the solubilizing property of oxygen. Simple aerobic bioreactors can be constructed with aerated lagoons or oxidation ponds for the storage of the waste in the open environment and with a rotating disk that contains the microbe as a biofilm for regular churning.

Examples of commonly used aerobic bioreactors at an industrial scale include stirred tank bioreactors, airlift bioreactors, and inverse fluidized bed bioreactors. The most common aerobic reactor is the stirred tank reactor where air is sparged from the bottom of the reactor. In the airlift bioreactor mixing is provided by the turbulence created by gas. The oxygen transfer coefficient is high for airlift reactors compared to that of stirred tank reactors.

Aerobic Reactor Specification:

No.	Item	Parameter	Remark
1	Three-dimensional silo volume	about 90m3	Ф5200mm H4000mm
2	Inner material	6# angle steel, t2.5mm plate	SUS304
3	Outer material	6# angle steel, t2.5mm plate	Q235B
4	Insulating layer	50mm	Fire retardant rock wool
5	Standard component	A4 strength class 70	SUS304
6	Electric auxiliary heating in winter	4kw

1	Spindle size	Ф400mm	Material: 45#
2	Mixing blade	6 layers	Material: SUS304,20#
3	Driving Method	Hydraulic ratchet drive	Material: 45#

1	Motor 7.5KW-4-B5	7.5kw	ABB, JSMC
2	Main pump HY40-RP	Plunger pump, flow 40L/MIN	HY, HSG
3	Main hydraulic cylinder	OD 200mm, Lever diameter 100mm	Bosch Rexroth, HSG
4	Hydraulic control check valve	Z2S10	Bosch Rexroth, HSG
5	Main valve block assembly	HT131118.23	Bosch Rexroth, HSG
6	The electromagnetic valve	4WE6J/G24	Bosch Rexroth, HSG
7	The electromagnetic valve	4WE6H/G24	Bosch Rexroth, HSG
8	Air filter	QUQ2	DEL
9	Suction filter	WU-160X100	DEL
10	Wind cooler	ACE6	SH
Working pressure:26/6MPa Working flow:15-58L/min System power:7.5KW Oil tank capacity:200L

1	Main frame lifting	3150×8900	Material: Q235
2	Motor reducer lifting	2.2kw
3	Feeding port motor	0.1kw(CH28-200-1200)	1:1200
4	Silo	1.5m³	SUS304 t5mm

1	Upper air supply scroll pump	Model: JCSFW-630-7H2, power: 2.2KW, flow: 350m³/h, pressure: 20KP	Contains attached filter, muffler, frequency conversion control
2	Bottom air supply scroll pump	Model: XCSFW-630-7H2, power: 2.2KW, flow: 350m³/h, pressure: 20KP	Contains attached filter, muffler, frequency conversion control
3	Air supply duct	DN80	Hot galvanizing
4	Check valve	H76	Clip-on

1	Biological filter bed	φ1.0*3.1m	PP, SUS304
2	Active biological filler	Ф50 hollow ball
3	Organic filler	Ф50 hollow ball
4	Circulating pump	Q=2,H=32,N=0.75KW	KSB, Kindway
5	Humidification pump	Q=1.8,H=16,N=0.37kw	SUS304
6	Circulating water tank	1x1.5x0.5mm	AAF
7	Fan	Model: JC-181B-3KW
8	Soft connection	DN250

1	PLC Controller	SIEMENS
2	Electronic components	Schneider, CHNT

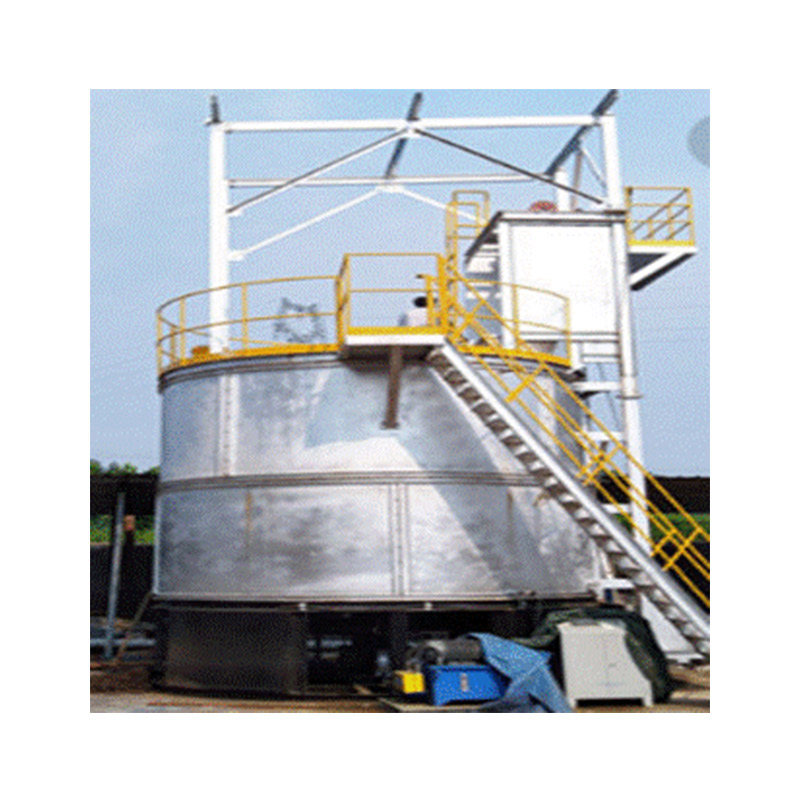

Aerobic Reactor Showing:
